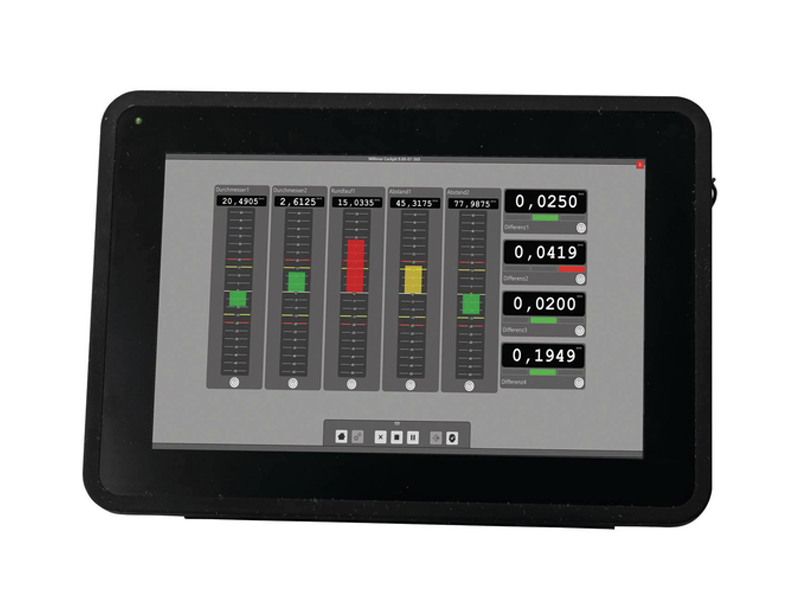

Bộ xử lý tín hiệu đo computer Millimar C 1750 PC

Bộ xử lý tín hiệu đo computer Millimar C 1750 PC

Giá: Liên hệ

Thương hiệu: Mahr Tình trạng: Còn hàng

Tính năng chính

  • Robust 10.1" touch PC with i5 processor
  • 8GB memory, industrial 256GB SSD
  • IP65 front housing
  • Interactive, touch-sensitive software

Millimar C 1750 PC

Art. no. 5312870

Measuring computer Millimar C 1750 PC

  • Robust 10.1″ touch PC with i5 processor
  • 8GB memory, industrial 256GB SSD
  • IP65 front housing
  • Interactive, touch-sensitive software
  • Very simple and intuitive to use
  • User-friendly creation of measuring tasks
  • Access to predefined wizards for maximum ease of use
  • Management of measuring tasks (save and load function)
  • Measuring task linked to images or drawings
  • Static and dynamic recording of measuring values
  • Supported by graphical operating elements
  • Live visualization of measuring values
  • Simultaneous display of 128 digital or analog measurement values
  • The Millimar N 1700 modules support a wide range of inductive measuring probes as well as Mahr instruments with a data interface
  • Connection of Mahr measuring technologies via Integrated Wireless
  • Data export to MS Excel or in qs-Stat format (dfq or dfx/dfd format)
  • Password-protected user levels (3 levels)
  • Online help (operating instructions) can be accessed directly from the software

Millimar Cockpit software incl. 10,1″ Touch-PC, preinstalled Windows 10 IoT “Value”, Mahr license key, Recovery-Stick 16 GB, operating instructions (online help), power source, VESA 100 standard stand

  • Robust 10.1″ touch PC with i5 processor
  • 8GB memory, industrial 256GB SSD
  • IP65 fron housing
  • Interactive, touch-sensitive software
  • Very simple and intuitive to use
  • User-friendly creation of measuring tasks
  • Access to predefined wizards for maximum ease of use
  • Management of measuring tasks (save and load function)
  • Measuring task linked to images or drawings
  • Static and dynamic recording of measuring values
  • Supported by graphical operating elements
  • Live visualization of measuring values
  • Simultaneous display of 128 digital or analog measurement values
  • The Millimar N 1700 modules support a wide range of inductive measuring probes as well as Mahr instruments with a data interface
  • Connection of Mahr measuring technologies via Integrated Wireless
  • Data export to MS Excel or in qs-Stat format (dfq or dfx/dfd format)
  • Password-protected user levels (3 levels)
  • Online help (operating instructions) can be accessed directly from the software
Millimar C 1750 PC | Art. no. 5312870
Display Vertical bar graph
Horizontal bar graph
Analog display or circular scale
Digital display
Any combination of display types can be chosen for each feature
Product type C 1750 PC
Battery type CR 2032 (3V Lithium)
Range of analog display µm ± 10000 , ± 5000 , ± 2000 , ± 1000 , ± 500 , ± 200 , ± 100 , ± 50 , ± 20 , ± 10 , tolerance related
Range of analog display inches ± .5″ , ± .2″ , ± .1” , ± .05″ , ± .02″ , ± .01” , ± .005″ , ± .002″ , ± .001” , ± .0005″ , tolerance related
Resolution µm 0,01
Tolerance display Upper and lower tolerance limit (per feature)
Upper and lower warning limit (per feature)
Compatibility USB , Integrated wireless , Millimar N 1700
Measuring combination Predefined formula templates for standard features
Links entered via comprehensive formula editor
Features 128
Dynamic functions Max, Min, Max-Min, Max+Min
Classification Max. 20 classes
Hardware interfaces 4x USB 3.0 , 2x COM port Full-PIN (RS232/485; 5V/12V) , 2x COM 2x COM port 3-PIN (RX, TX, GND; RS232/485 switchable) , 2× 10/100/1000Mbit RJ45 Ports; 1x W-LAN connector , Display port , HDMI
Control inputs via N 1704 I/O
Control outputs via N 1704 I/O
Energy supply 100-240V ACDC active switching; 12V DC-Out
Power consumption 30 Watt
IP protection category IP 65 (Front Panel)
Relative humidity non-condensing 90 %
Operating temperature Min -10 °C
Operating temperature Max 60 °C
Product weight 2.3 kg

Application

Convenient measuring computer with smart and universal software for complex measuring tasks in the manufacturing sector
