Multidirectional and High Feed Back Turning with No Down Time and High Productivity

The XNMV 1105 is a double-sided 4-corner insert with a 70-degree angle. It combines the advantages of the ISO CNMG and DNMG inserts for various machining applications such as external turning, face turning and external profiling. Highly efficient machining with a maximum 3.5 mm depth of cut in both external forward turning and face turning as well as good chip control. An additional advantage of the XNMV 1105 insert is its unique high feed backward turning capability. This technologically advanced capability is made possible due to the insert’s helical cutting edge that works to reduce cutting forces as well as the insert’s lower entering angle – both features greatly contribute towards higher productivity. In addition, the insert’s rigidity is strengthened by its increased thickness while its stability is improved by the insert’s wide support surface.

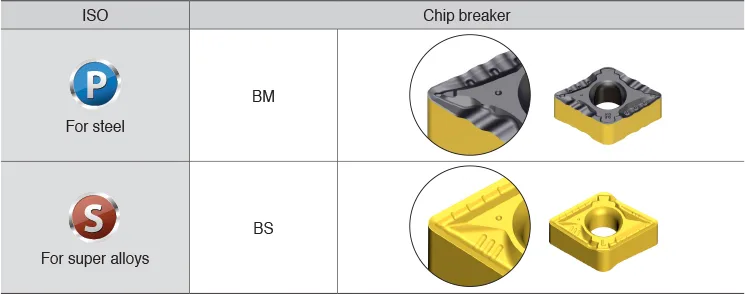

XNMV insert’s chip breakers

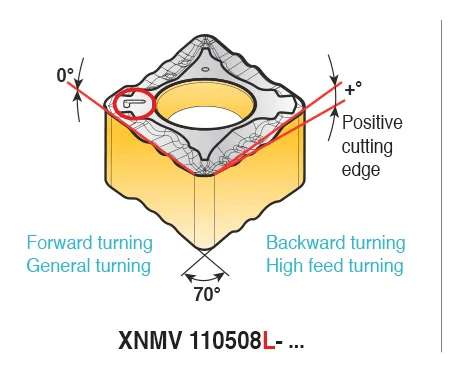

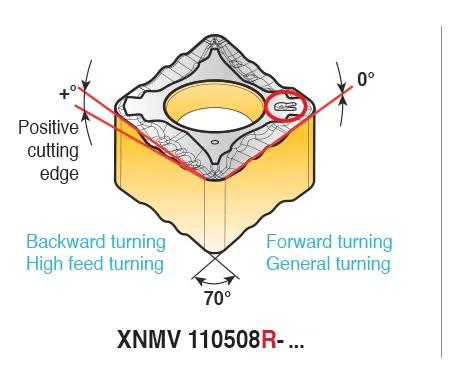

XNMV BM/BS insert’s hand type

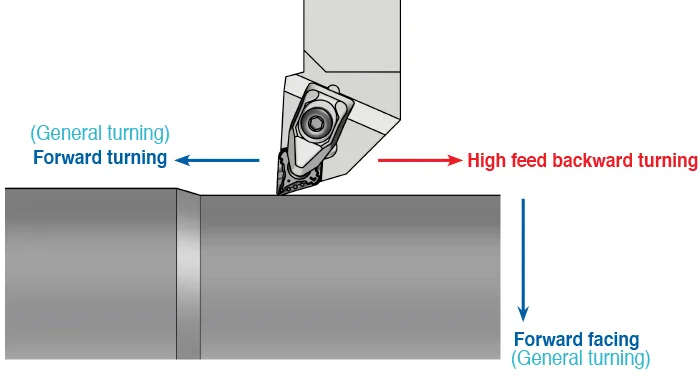

» Recommended hand type for high feed backward turning

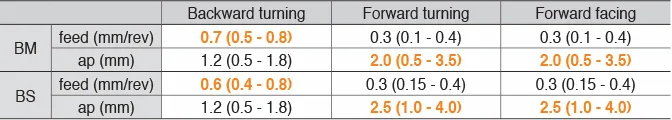

XNMV Cutting conditions

XNMV BM’s Backward turning chip control range

XNMV BM’s Forward turning chip control range

XNMV BS’s Backward turning chip control range

XNMV BS’s Forward turning chip control range

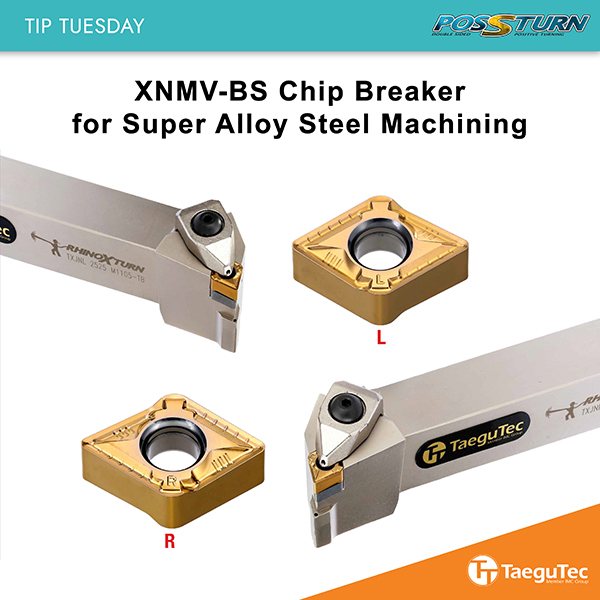

Inserts and Holders

Caution) Hand type insert
» Apply L insert to L holder and R boring bar
» Apply R insert to R holder and L boring bar
