Dao tiện lỗ nhỏ
Giá: Liên hệ
| 型 號 EDP NO. | ØK | F | L2 | L | r | s | ØD | 在 庫 STOCK | 適 用 刀 架 HOLDER NO |
|---|---|---|---|---|---|---|---|---|---|
| 25.3009-01 ME | 3 | 1.65 | 9.0 | 40 | 0.1 | 0.3 | 4 | SP.5650-04** | |
| 25.3015-01 ME | 3 | 1.65 | 15.0 | 45 | 0.1 | 0.3 | 4 | SP.5650-04** | |
| 25.4012-01 ME | 4 | 2.15 | 12.0 | 42 | 0.1 | 0.5 | 4 | SP.5650-04** | |
| 25.4020-01 ME | 4 | 2.15 | 20.0 | 50 | 0.1 | 0.5 | 4 | SP.5650-04** | |
| 25.5015-02 ME | 5 | 2.7 | 15.0 | 50 | 0.2 | 0.6 | 6 | SP.5650-06** | |
| 25.5025-02 ME | 5 | 2.7 | 25.0 | 60 | 0.2 | 0.6 | 6 | SP.5650-06** | |
| 25.6020-02 ME | 6 | 3.2 | 20.0 | 55 | 0.2 | 0.6 | 6 | SP.5650-06** | |
| 25.6030-02 ME | 6 | 3.2 | 30.0 | 65 | 0.2 | 0.6 | 6 | SP.5650-06** | |
| 25.7021-02 ME | 7 | 3.8 | 21.0 | 60 | 0.2 | 0.6 | 8 | SP.250-08** SP.5650-08** |
|
| 25.7035-02 ME | 7 | 3.8 | 35.0 | 75 | 0.2 | 0.6 | 8 | SP.250-08** SP.5650-08** |
|
| 25.8025-02 ME | 8 | 4.3 | 25.0 | 65 | 0.2 | 0.6 | 8 | SP.250-08** SP.5650-08** |
|
| 25.8040-02 ME | 8 | 4.3 | 40.0 | 80 | 0.2 | 0.6 | 8 | SP.250-08** SP.5650-08** |
|
| 10030-02 ME | 10 | 5.5 | 30.0 | 75 | 0.4 | 0.8 | 10 | SP.250-10** SP.5650-10** |
|
| 10050-02 ME | 10 | 5.5 | 50.0 | 95 | 0.4 | 0.8 | 10 | SP.250-10** SP.5650-10** |
|
| 無”●”標示者為訂製品。Without “●” marking means custom products. | |||||||||
| 有”●”標示者為在庫品。With “●” marking means items in stock. | |||||||||
 |
|||||||||

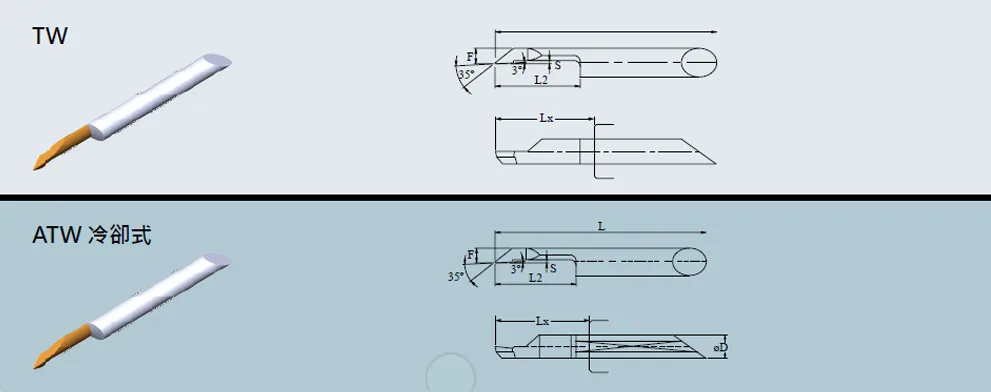

| 型 號 EDP NO. | 內冷式 型號 EDP NO. | ØK | F | L2 | Lx | r | s | ØD | 在 庫 STOCK | 適用套筒 Applicable Sleeve |
|---|---|---|---|---|---|---|---|---|---|---|
| TW 25.3009-01 ME | ATW 25.3009-01 ME | 3 | 1.65 | 9.0 | 11.0 | 0.1 | 0.3 | 4 | SP.380-04** | |
| TW 25.3015-01 ME | ATW 25.3015-01 ME | 3 | 1.65 | 15.0 | 17.0 | 0.1 | 0.3 | 4 | SP.380-04** | |
| TW 25.4012-01 ME | ATW 25.4012-01 ME | 4 | 2.15 | 12.0 | 14.0 | 0.1 | 0.5 | 4 | SP.380-04** | |
| TW 25.4020-01 ME | ATW 25.4020-01 ME | 4 | 2.15 | 20.0 | 22.0 | 0.1 | 0.5 | 4 | SP.380-04** | |
| TW 25.5015-01 ME | ATW 25.5015-01 ME | 5 | 2.7 | 15.0 | 17.0 | 0.2 | 0.6 | 5 | SP.380-05** | |
| TW 25.5025-01 ME | ATW 25.5025-01 ME | 5 | 2.7 | 25.0 | 27.0 | 0.2 | 0.6 | 5 | SP.380-05** | |
| TW 25.6020-01 ME | ATW 25.6020-01 ME | 6 | 3.2 | 20.0 | 23.0 | 0.2 | 0.6 | 6 | SP.380-06** | |
| TW 25.6030-01 ME | ATW 25.6030-01 ME | 6 | 3.2 | 30.0 | 45.0 | 0.2 | 0.6 | 6 | SP.380-06** | |
| TW 25.7021-01 ME | ATW 25.6020-01 ME | 7 | 3.8 | 21.0 | 24.0 | 0.2 | 0.6 | 8 | SP.380-07** | |
| TW 25.7035-01 ME | ATW 25.6030-01 ME | 7 | 3.8 | 35.0 | 38.0 | 0.2 | 0.6 | 8 | SP.380-07** | |
| TW 25.8021-01 ME | ATW 25.8021-01 ME | 8 | 4.3 | 24.0 | 27.0 | 0.2 | 0.6 | 8 | SP.380-08** | |
| TW 25.8040-01 ME | ATW 25.8040-01 ME | 8 | 4.3 | 40.0 | 43.0 | 0.2 | 0.6 | 8 | SP.380-08** | |
| 無”●”標示者為訂製品。Without “●” marking means custom products.k. | ||||||||||
| 有”●”標示者為在庫品。With “●” marking means items in stock. | ||||||||||
|
||||||||||
Thông số kỹ thuật
Thông số kỹ thuật
- 型 號 EDP NO. — ØK — F — L2 — L — r — s — ØD — 在 庫 STOCK — 適 用 刀 架 HOLDER NO
- 25.3009-01 ME — 3 — 1.65 — 9.0 — 40 — 0.1 — 0.3 — 4 — SP.5650-04**
- 25.3015-01 ME — 3 — 1.65 — 15.0 — 45 — 0.1 — 0.3 — 4 — SP.5650-04**
- 25.4012-01 ME — 4 — 2.15 — 12.0 — 42 — 0.1 — 0.5 — 4 — SP.5650-04**
- 25.4020-01 ME — 4 — 2.15 — 20.0 — 50 — 0.1 — 0.5 — 4 — SP.5650-04**
- 25.5015-02 ME — 5 — 2.7 — 15.0 — 50 — 0.2 — 0.6 — 6 — SP.5650-06**
- 25.5025-02 ME — 5 — 2.7 — 25.0 — 60 — 0.2 — 0.6 — 6 — SP.5650-06**
- 25.6020-02 ME — 6 — 3.2 — 20.0 — 55 — 0.2 — 0.6 — 6 — SP.5650-06**
- 25.6030-02 ME — 6 — 3.2 — 30.0 — 65 — 0.2 — 0.6 — 6 — SP.5650-06**
- 25.7021-02 ME — 7 — 3.8 — 21.0 — 60 — 0.2 — 0.6 — 8 — SP.250-08** SP.5650-08**
- 25.7035-02 ME — 7 — 3.8 — 35.0 — 75 — 0.2 — 0.6 — 8 — SP.250-08** SP.5650-08**
- 25.8025-02 ME — 8 — 4.3 — 25.0 — 65 — 0.2 — 0.6 — 8 — SP.250-08** SP.5650-08**
- 25.8040-02 ME — 8 — 4.3 — 40.0 — 80 — 0.2 — 0.6 — 8 — SP.250-08** SP.5650-08**
- 10030-02 ME — 10 — 5.5 — 30.0 — 75 — 0.4 — 0.8 — 10 — SP.250-10** SP.5650-10**
- 10050-02 ME — 10 — 5.5 — 50.0 — 95 — 0.4 — 0.8 — 10 — SP.250-10** SP.5650-10**
- 無"●"標示者為訂製品。Without "●" marking means custom products.
- 有"●"標示者為在庫品。With "●" marking means items in stock.
Thông số kỹ thuật
- 型 號 EDP NO. — 內冷式 型號 EDP NO. — ØK — F — L2 — Lx — r — s — ØD — 在 庫 STOCK — 適用套筒 Applicable Sleeve
- TW 25.3009-01 ME — ATW 25.3009-01 ME — 3 — 1.65 — 9.0 — 11.0 — 0.1 — 0.3 — 4 — SP.380-04**
- TW 25.3015-01 ME — ATW 25.3015-01 ME — 3 — 1.65 — 15.0 — 17.0 — 0.1 — 0.3 — 4 — SP.380-04**
- TW 25.4012-01 ME — ATW 25.4012-01 ME — 4 — 2.15 — 12.0 — 14.0 — 0.1 — 0.5 — 4 — SP.380-04**
- TW 25.4020-01 ME — ATW 25.4020-01 ME — 4 — 2.15 — 20.0 — 22.0 — 0.1 — 0.5 — 4 — SP.380-04**
- TW 25.5015-01 ME — ATW 25.5015-01 ME — 5 — 2.7 — 15.0 — 17.0 — 0.2 — 0.6 — 5 — SP.380-05**
- TW 25.5025-01 ME — ATW 25.5025-01 ME — 5 — 2.7 — 25.0 — 27.0 — 0.2 — 0.6 — 5 — SP.380-05**
- TW 25.6020-01 ME — ATW 25.6020-01 ME — 6 — 3.2 — 20.0 — 23.0 — 0.2 — 0.6 — 6 — SP.380-06**
- TW 25.6030-01 ME — ATW 25.6030-01 ME — 6 — 3.2 — 30.0 — 45.0 — 0.2 — 0.6 — 6 — SP.380-06**
- TW 25.7021-01 ME — ATW 25.6020-01 ME — 7 — 3.8 — 21.0 — 24.0 — 0.2 — 0.6 — 8 — SP.380-07**
- TW 25.7035-01 ME — ATW 25.6030-01 ME — 7 — 3.8 — 35.0 — 38.0 — 0.2 — 0.6 — 8 — SP.380-07**
- TW 25.8021-01 ME — ATW 25.8021-01 ME — 8 — 4.3 — 24.0 — 27.0 — 0.2 — 0.6 — 8 — SP.380-08**
- TW 25.8040-01 ME — ATW 25.8040-01 ME — 8 — 4.3 — 40.0 — 43.0 — 0.2 — 0.6 — 8 — SP.380-08**
- 無"●"標示者為訂製品。Without "●" marking means custom products.k.
- 有"●"標示者為在庫品。With "●" marking means items in stock.
Tài liệu sản phẩm
Vui lòng liên hệ TTCTECH để nhận catalogue và tài liệu kỹ thuật.
