Art. no. 4400191

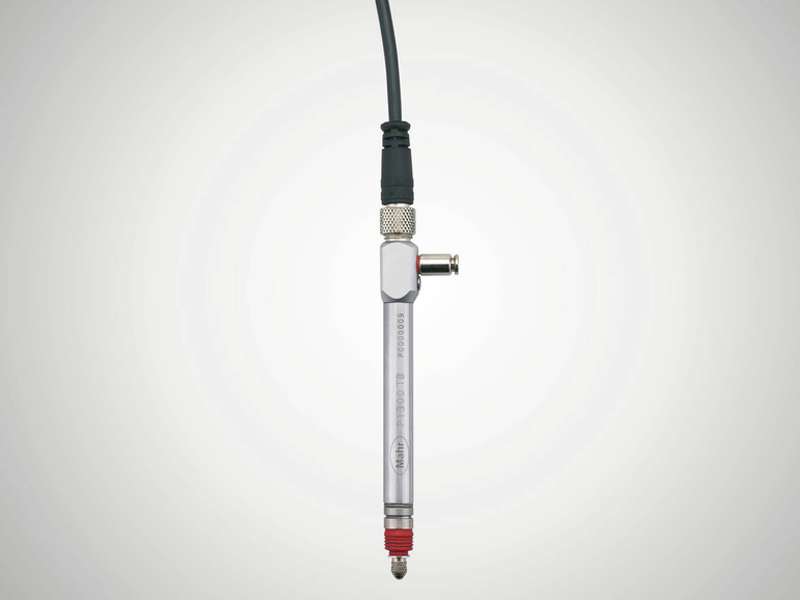

• Millimar P1300 TB | Art. no. 4400191
• Measuring range from: -2 mm
• Measuring range up to: 2 mm
• Product type: P1300 TB
• Distance of lower stop MIN: -2.2 mm
• Distance of lower stop MAX: 0 mm
• Distance of upper stop MIN: 2.2 mm
• Distance of upper stop MAX: 4.4 mm
• Lifter / retraction: Compressed air retraction (max. 1 bar)
• Measuring force (N): Depending upon air pressure
• Sensitivity deviation: 0.3 %
• Repeatability fw (µm): 0.1 µm
• Measuring value hysteresis fu (µm): 0.5 µm
• Linearity deviation within +/- 0,5 mm: 1 µm
• Linearity deviation within +/- 1,0 mm: 3 µm
• IP protection category: IP 64
• Cable length: 2.5 m
• Operating temperature Min: 10 °C
• Operating temperature Max: 40 °C
• Storage temperature MIN: -10 °C
• Storage temperature MAX: 80 °C
• Temperature coefficient: 0.15 µm/°C
• Compatibility: Tesa
• Dimensions: a 94.2 mm | b 61.9 mm | c 107.2 mm | d 133.6 mm |
